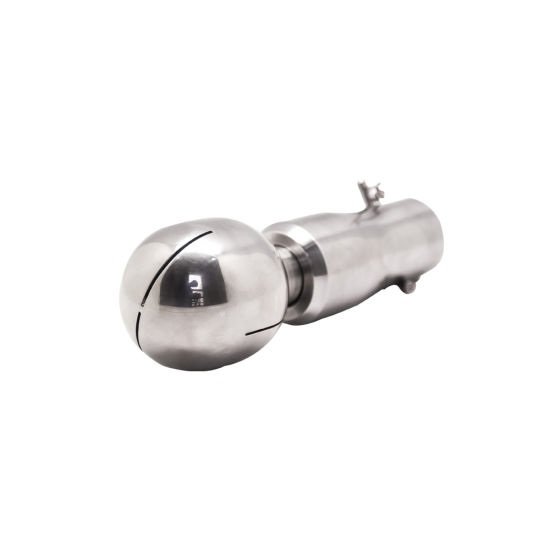

At Ratan Tubes and Engineering, we specialize in manufacturing and supplying high-performance Spray Ball Valves and Rotary Ball Valves that are designed for efficient cleaning and washing applications in hygienic and industrial systems. These valves play a critical role in CIP (Clean-In-Place) systems, ensuring complete cleaning coverage inside tanks, vessels, and pipelines without requiring manual disassembly.
| Standards | 3A/SMS/DIN |
| Material | SS304 / SS316L |
| Sizes | 1/2" - 2" DN15 - DN50 |
| Connection Type(s) | Weld End / Clamp End / Thread End / Pin type |
| Operation Type(s) | Manual / Pneumatic |
| Surface Finishing | Ra ≤ 0.8μm |
| Working Temperature | -10°C to 102°C ( EPDM ) |
| Pressure Rating | 0.2 - 10 Bar ( DN25 - DN100 ) 0.2 - 8 Bar ( DN125 - DN150 ) |
| Application Scopes | Dairy / Food / Beverage / Pharmacy / Cosmetic / Chemical |
| Marking | Laser Marking |
