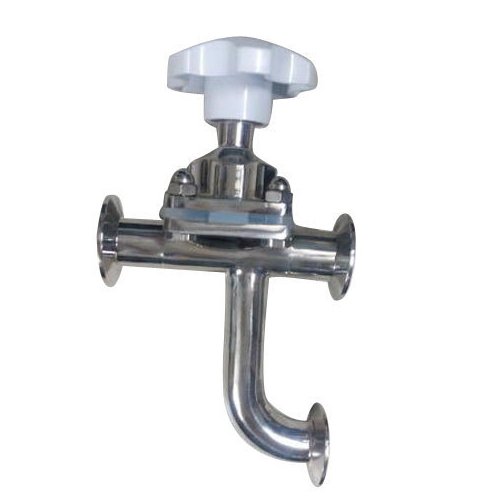

Zero Dead Leg Valve – Ratan Tubes and Engineering

Ratan Tubes and Engineering offers premium-quality Zero Dead Leg Valves specially designed for critical hygienic applications where product hold-up and contamination risks must be completely eliminated. These valves are ideal for pharmaceutical, biotechnology, food & beverage, dairy, and cosmetic industries that require sterile and aseptic processing.

DATA & SPECIFICATIONS

Standards3A/SMS/DIN
MaterialSS304 / SS316L
Sizes1/2" - 4"
DN15 - DN100
SealSilicone / EPDM / PTFE
Connection Type(s)Triclover End
Operation Type(s)Manual
Surface FinishingRa ≤ 0.8μm
Working Temperature-4 ~ 302°F (-30 ~ 150°C)
Pressure Rating0.2 - 10 Bar ( DN25 - DN100 )
0.2 - 8 Bar ( DN125 - DN150 )
Application ScopesDairy / Food / Beverage / Pharmacy / Cosmetic / Chemical
MarkingLaser Marking

A Zero Dead Leg Valve is engineered to eliminate “dead space” within the valve body, preventing fluid stagnation and bacterial growth. The valve design ensures 100% drainability, making it perfect for CIP (Clean-in-Place) and SIP (Steam-in-Place) systems.

Key Features:

  • True Zero Dead Space: Ensures no product hold-up, reducing contamination risks.
  • Hygienic Construction: Made from SS 316L with electropolished finish for maximum cleanliness.
  • Full Drainability: Designed for complete self-draining during cleaning cycles.
  • Excellent Flow Control: Low pressure drop and smooth flow path.
  • Flexible Installation: Available in horizontal or vertical configurations.
  • Compliance: Meets ASME BPE, cGMP, and FDA standards for sterile applications.

Applications:

Sampling and process control in sterile systems

Injection points and dosing lines

High-purity water systems (WFI, PW)

Media and buffer preparation tanks

Ratan Tubes and Engineering supplies manual, pneumatic, and automated zero dead leg valves in a wide range of sizes, connection types (TC, weld, threaded), and diaphragm materials (EPDM, PTFE, Silicone). Each valve undergoes rigorous testing for leakage, drainability, and surface finish before dispatch, ensuring consistent performance and reliability.

With a strong distribution network in Ahmedabad, Hyderabad, Goa, Baddi, Bangalore, and Kolkata, we guarantee timely delivery, expert consultation, and after-sales support for your sanitary valve requirements.
